SPECIFICATION
Type | E-MTB |

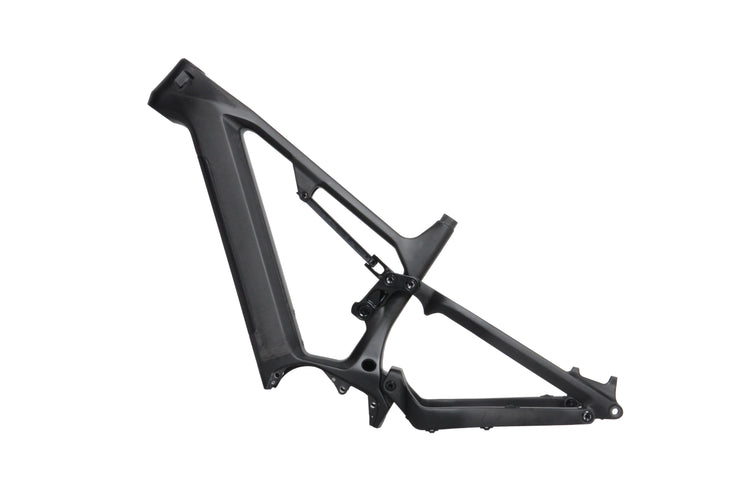

Frame | TORAY T700 carbon fiber, 197x12mm thru axle |
Frame travel | 150mm |
Motor | BAFANG 48V M620 1000W motor |
Battery | DENGFU 48V 17.5Ah 840Wh |
Suitable rear shock | 230X60mm |
Headset | 1-1/8" to 1-1/2" (OD 51/62mm / ID 44/56mm) |
Cable routing | internal |
Max tire | 26er*4.0” |
Finish | red/white/black in glossy/matt |
Include | frame, headset, thru axle, motor, battery, battery bracket, charger |
If shipping to UK, pls contact us!
SIZE | 16" | 18" | 20" | |
A | 623.6 | 646.3 | 674.9 | |
B | 426.6 | 445.9 | 470.6 | |
C | 623.4 | 631.9 | 641.7 | |
D | 410 | 451 | 510 | |
E | 495 | 495 | 495 | |
F | 66º | 66º | 66º | |
G | 72.5º | 72.5º | 72.5º | |
H | 25 | 25 | 25 | |
I | ||||
J | 1243.2 | 1266.3 | 1295.4 | |
K | 110 | 120 | 130 |
